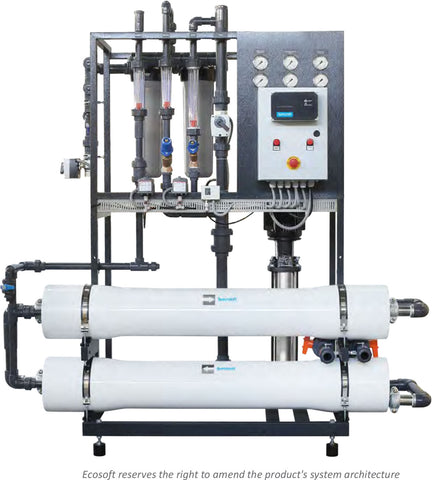

ECOSOFT МО2 8" REVERSE OSMOSIS SYSTEM

****Please call for latest pricing****

ECOSOFT МО2
8" REVERSE OSMOSIS SYSTEM

APPLICATIONS

Process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalination, food and beverage, utility water treatment.

EQUIPMENT:

  • Grundfos® CR 5-20 high pressure pump

  • 8040 membrane housing page20image324610416 page20image324612496 page20image3246100002 pcs

  • BB20 sediment prefilter page20image324613328 page20image324610208 page20image3246131202 pcs

  • Motorized valves page20image324612912 page20image324612704 page20image3246122882 pcs

    (feed water in, flush out)

  • Balancing valves page20image324609376 page20image324615824 page20image3246156162 pcs

1 pcs

(concentrate reject, concentrate recycle)

  • Electrical cabinet with Ecosoft controller

  • Piping, instrumentation, steel frame

    OPTIONS

FilmtecTM XLE-440 / ECO PRO-440 or Ecosoft ELP-8040 membranes

1 set 1 set

  • Dosing pump for antiscalant or other RO chemicals

  • Permeate inlet for permeate membrane rinse

  • Raw water mixing line

    CONNECTION PORT SIZES:

    Influent water page20image324614992 page20image324614784 page20image324614576G 11⁄2′′ Permeate page20image324614368 page20image324612080 page20image324534272G 1′′ Concentrate page20image324534480 page20image324534688 page20image324534896G 11⁄2′′ CIP inlet page20image324535104page20image324535312 page20image324535520G 11⁄2′′ CIP return page20image324535728 page20image324535936 page20image324536144G 11⁄2′′ CIP permeate page20image324536352 page20image324536560 page20image324536768G 1⁄2′′ Antiscalant dosing port page20image324536976page20image324537184 page20image324537392G 1⁄2′′
