Aquapro UV12HTM Wholehouse package

What safe drinking water from every tap in your house? All homes with tank water should have this unit installed.

The Aquapro HTM is a large home , lite commercial model capable of producing 45lpm of perfect bacteria free water.

We have included in this package the prefiltration used to pre treat the water prior to the UV system.

Feature of the Aquapro UV System

  • Count down timer

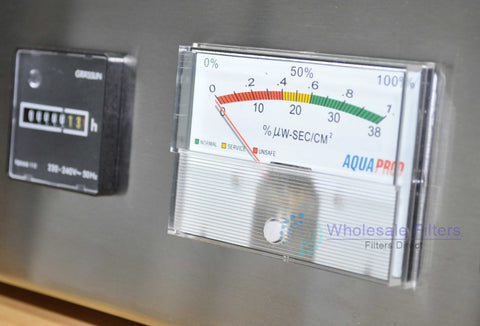

  • UV intensity meter. (always know the UV light is sterilizing the water)
  • Light fail alarm
  • Bracket feet for horizontal or vertical installation
  • 20mm or 25mm inlet / outlet ports



Package deal includes

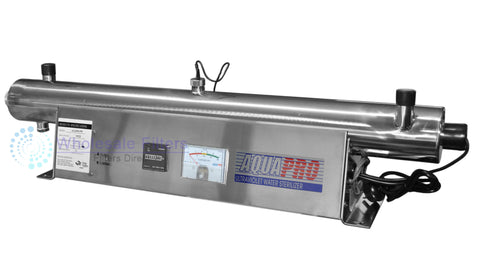

  • 1 x Aquapro UV HTM sterilizer unit.

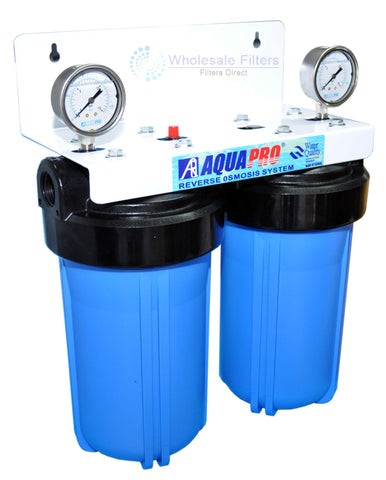

  • 1 x App60 Twin 10" jumbo housings with pressure gauges
  • 1 x Watts pleated 20micron washable filter
  • 1 x Dual depth filter from 20 micron down to 1 micron

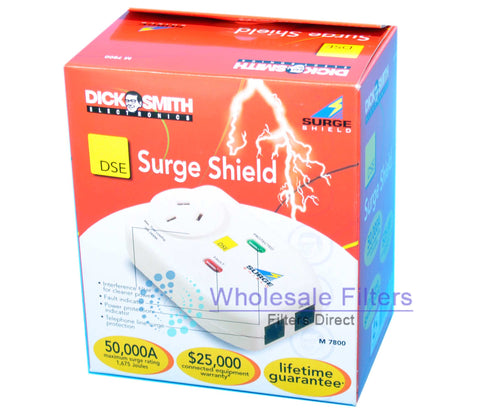

  • surge protection



The unit installation goes as follows.

Installing the twin filter housings first, this should be after the pump then gose the  Aquapro UV system.

The water after this will go direct to the home or application.

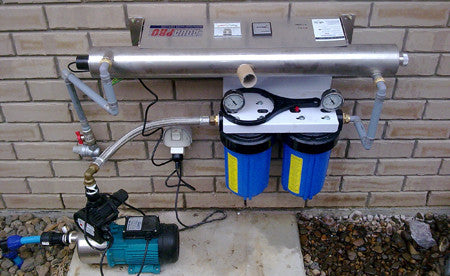

 Here is a basic installation
